Industrial Pumps

PVDF Sealless Magnetic Drive Pumps

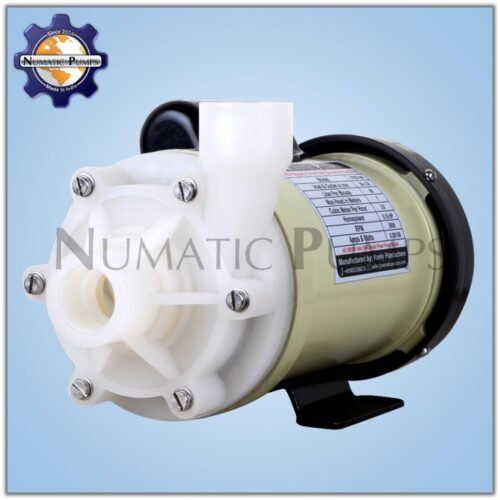

PVDF Magnet Coupled Sealless Pump UAE

● Pump Model No – PVDF-60

● Pump Type – Centrifugal, Magnetic Drive, Non Self Priming Pump
● Pump Material – PVDF (Polyvinylidene fluoride)
● Shaft – Ceramic
● O’Ring, Bush & Bearing – Viton, GFT (Glass filled Teflon), Carbon
● Media – Concentrated Acid and Chemicals
● Max Liquid Density – 1.3
● Max Head – Upto 7 Meter
● Max Flow – 60 Leter per Minute
● Inlet & Outlet – 20 mm x 20 mm (Nozzle / Threaded)
● Motor Specification – 0.25 HP, NFLP, 2800 RPM, 50 Hz, 1 Phase or 3 Phase
● Magnet – High Power Permanent Rare earth Magnets
● Fluid Temperature – 70° C (Max)
● Seal Type – Sealless
● Impeller – Semi Open Type

Our range of PP Magnetic Drive Pumps

PVDF Magnetic Drive Pumps

PVDF Sealless Magnetic drive pumps have a particular seal-less design that is suitable to pump corrosive and dangerous liquids. The structure of PVDF Sealless Magnetic Drive Pumps is simple so the pump requires a very reduced maintenance with consequent save in terms of repairing and spare parts costs during the pump life. The external magnet placed on the drive shaft transmits the motion to the internal magnet connected to the impeller, which rotates and moves the fluid through the pump.

PVDF Corrosion resistant chemical centrifugal pumps series are made of thermoplastic materials PVDF (Polyvinylidene fluoride) and are suitable for high corrosive liquids and high Temperature. Thanks to the innovative Magnetic Drive system, reduce the risks of losses and the maintenance costs. The transmission of the motion occurs through magnetic joints without using mechanical shaft seals. This guarantees the maximum safety and efficiency.

Magnetic Drive Pump

Sealless Pump

PVDF-60 Sealless Magnetic Drive Pump

At Numatic Pumps, a leading manufacturer & exporter in India, we understand the need for safe, effective, and maintenance-free solutions in industries that deal with dangerous chemicals. The PVDF-60 Sealless Magnetic Drive Pump is a hard and high-performance chemical process pump, specially designed to handle aggressive, corrosive, and high-temperature fluids without the risk of leakage or impurity.

At Numatic Pumps, a leading manufacturer & exporter in India, we understand the need for safe, effective, and maintenance-free solutions in industries that deal with dangerous chemicals. The PVDF-60 Sealless Magnetic Drive Pump is a hard and high-performance chemical process pump, specially designed to handle aggressive, corrosive, and high-temperature fluids without the risk of leakage or impurity.

What is the PVDF-60 Sealless Magnetic Drive Pump?

The PVDF-60 is a horizontal centrifugal pump featuring a sealless magnetic drive machine, which means it operates without mechanical seals that are chosen for wear and leakage. Instead, a powerful magnet assembly transmits turning from the motor to the impeller, ensuring a leak-proof and zero-pollutant pumping process.

The body of the pump is constructed from PVDF (Polyvinylidene Fluoride), a highly strong thermoplastic known for its chemical and thermal resistance. With no metal parts in contact with the fluid, the pump ensures full resistance to acidic, alkaline, and aggressive chemicals.

Key Benefits of PVDF-60 Magnetic Drive Pump

Leak-Free Operation

The PVDF-60 is a horizontal centrifugal pump featuring a sealless magnetic drive machine, which means it operates without mechanical seals that are chosen for wear and leakage. Instead, a powerful magnet assembly transmits turning from the motor to the impeller, ensuring a leak-proof and zero-pollutant pumping process.



Superior Chemical Compatibility

The use of PVDF ensures high resistance against a wide range of chemicals such as:

  • Sulfuric Acid (H₂SO₄)
  • Nitric Acid (HNO₃)
  • Hydrochloric Acid (HCl)
  • Hydrofluoric Acid (HF)
  • Sodium Hypochlorite and more

High Temperature Handling

With the capability to operate at fluid temperatures up to 110°C, the PVDF-60 is well-suited for hot chemical circulation and high-heat industrial environments.



Low Maintenance

Since there are no seals to wear out, and with non-metallic wetted parts, the PVDF-60 pump significantly reduces maintenance frequency and costs

Environmentally Safe

Designed to prevent expose and release, it provides a cleaner and safer working environment, making it approved with modern industrial safety standards.



Typical Applications

The PVDF-60 Sealless Magnetic Drive Pump is an excellent choice for:

  • Acid and alkali transfer in chemical plants
  • Wastewater and effluent treatment
  • Electroplating and anodizing baths
  • Pharmaceutical mixing and fluid circulation
  • Handling aggressive solvents in labs and production lines
  • Fertilizer and pesticide formulation
  • Dosing systems and filtration units

Why Choose Numatic Pumps?

Numatic Pumps is a trusted name among magnetic drive pump manufacturers & exporters in India. With a decade of experience and a strong foundation in pump engineering, we specialize in designing corrosion-resistant solutions for complex industrial challenges. Our manufacturing unit is based in Mumbai, and we deliver to both domestic and international markets.



We are committed to

  • Accurate engineering and high-quality materials
  • Timely delivery with a customer-first approach
  • Customized pumping solutions for diverse industries
  • Competitive pricing and excellent technical support
Get in Touch with Us

If you are looking for a strong, sealless, and chemical-resistant pump, the PVDF-60 Magnetic Drive Pump from Numatic Pumps is your ideal choice. As a leading manufacturer & exporter in India, we offer custom-made pumping solutions that ensure safety, effectiveness, and long duration.

Contact us today for a free specification or to speak with our technical experts.
