NUMATIC PUMPS

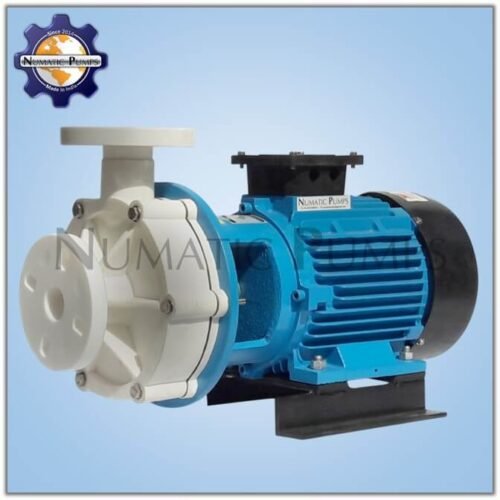

Monoblock Pump PVDFM-1

Acid Transfer Pumps Manufacturers in India

● Pump Type – Centrifugal, Horizontal, Monoblock type, Non Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of PVDF (Polyvinylidene Fluoride)
● Shaft – EN8 with Ceramic Sleeve
● Max Head – Upto 14 Meter
● Max Flow – 233 Leter per Minute
● Standard Duty – 8 m3/hr @ 7 Meter
● Inlet & Outlet – 25 mm x 25 mm (Threaded end Connection with Flange)
● Motor Specification – 1 HP, NFPL, 2800 RPM, 50 Hz, 3 Phase.
● Fluid Temprature – 70° C (Max)
● Seal Type – PTFE (Teflon) Bellow with Ceramic and GFT Facings
● Impeller – Semi Open Type

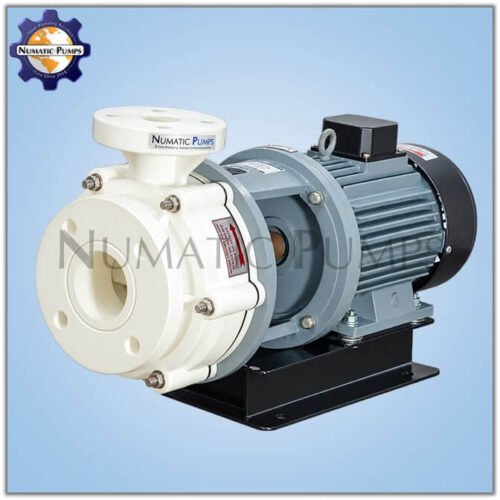

PVDF Monoblock Pump

PVDF Monoblock Pump is optimum for Acid and High Temperature Corrosion Chemicals. These Chemical Pumps are Designed and manufactured to transfer a variety of liquids range like corrosive acids, alkalies, and solvents. These Pumps are also recommended in Chemical, Petrochemical, Refinery, Power Generation, Oil Extraction, and Pharmaceutical Industries. The Sanitary Fitting and Construction Form High Grade – Pressed Polyvinylidene Difluoride (PVDF) ensures smooth and even transfer of liquids. Highly lapped and finished Mechanical Sealing System ensures leak-proof working. The liquid does not react with the metals or inside environment of the pump, which ensures the safety of Media. These are very easy to install. These are manufactured from optimum quality metals, which ensure its high resistance against various liquids and ensure safe usage.
Our Product range includes solid injection molded Polypropylene (PP) and Glass Filled Polypropylene (GFP) pumps, PVDF lined pumps. Today we are leading manufacturer and Supplier of PVDF Monoblock pumps in India. PP / PVDF -series pumps. These Pumps are specially design for highly corrosive chemicals in which metal pumps are not recommended for a higher cost.
This pumps design are single piece molded polypropylene and PVDF volute casing with a semi-open impeller to ensure smooth running performance. The high alumina ceramic sleeve protects shaft from any corrosion and abrasion. The GFT or Sic Vs. Ceramic PTFE below Mechanical seal prevents the leakage from the pumps. The Cast Iron heavy duty oil lubricated bearing housing provide maximum strength to pump. These pumps are also available in Centrifugal version with a compact design. The PVDF series pump thick walled casing liner & back plate is made of PVDF. A large metal insert in PVDF impeller increased mechanical strength.

PVDF Pump

* PVDF Solid Moulded Pump
* PVDF Lined Pump

PVDF pumps are classified into two types. The first is PVDF Solid Injection Moulded, and the second is PVDF Lined. The entire pump in the PVDF Solid Injection Moulded type is made of solid PVDF, whereas in the lined pump, the PVDF material is lined in metal armour and the entire wetted parts are lined with PVDF material. It is determined by client usage and budget, as well as environmental and work pressures.

PVDF Monoblock Pump is designed to transport aggressive, highly concentrated, and dangerous liquids. It is used in a variety of applications. These are required for various industries and applications because of their durability and chemical and corrosion resistance. Numatic Pumps is well-known PVDF Pump Manufacturers in India Mumbai, recognising its importance in simplifying and expediting the corrosive chemical handling process. To fulfil the different needs of our customers, we create each PVDF Pump in a variety of dimensions, designs, volt ratings, material quality, and other criteria. We sell a broad variety of PVDF Centrifugal Pumps

PVDF Pumps benefits:

* PVDF Monoblock Pumps are built to withstand the harshest circumstances and can handle high system pressures.
* It is made out of a single piece of a thick-walled vacuum-proof plastic casing with no extra sealing points within the pump.
* To avoid damage to the PVDF housing, it is entirely encased in a metal body.
* The metal casing is designed to absorb any pipeline forces.
* Its heavy-duty pedestal ensures trouble-free operation.
* A modular system allows for cost-effective spare component storage.
* The PVDF Monoblock Pumps and base plate were coated with epoxy paint to prevent them from corrosion on the outside.

PVDF Pump specifications:

* Extrusion, injection, compression, rotational moulding, blow moulding, and other methods of processing are all possible.
* Most alcohols, aliphatic, aromatic organic solvents, and acids are chemically inert to PVDF Monoblock Pumps.
* It possesses tensile yard strength of up to 55 MPa at 23°C and 10 MPa at 100°C and is known for its mechanical qualities.
* For homopolymer grades, PVDF Pumps can be utilised at temperatures as high as 100°C (without mechanical stress).
* UV (>232nm) is unaffected, and gamma radiation resistance is strong.
* The intrinsic fire resistance of the PVDF Monoblock Pump is good, and it may be welded.
