PP Chemical Pumps

Model No: BP - 1

● Pump Type – Centrifugal, Horizontal, Monoblock type, Non Self Priming Pump
● Pump Material – Casing, Impeller and Back Plate is Made of PP (Polypropylene) Material
● Shaft – EN 8 with Ceramic Sleeve
● Max Head – Up to 14 Meter
● Max Flow – 233 Liter per Minute
● Negative Suction – Maximum 3 Meter with foot valve
● Inlet & Outlet – 25 mm x 25 mm (Flanged end Connection)
● Motor Specification – 1 HP, NFLP, 2800 RPM, 50 Hz, 3 Phase.
● Fluid Temperature – 70° C (Max)
● Seal Type – PTFE (Teflon) Bellow with Ceramic Vs GFT Facings, Ceramic Sleeve
● Impeller – Semi Open Type

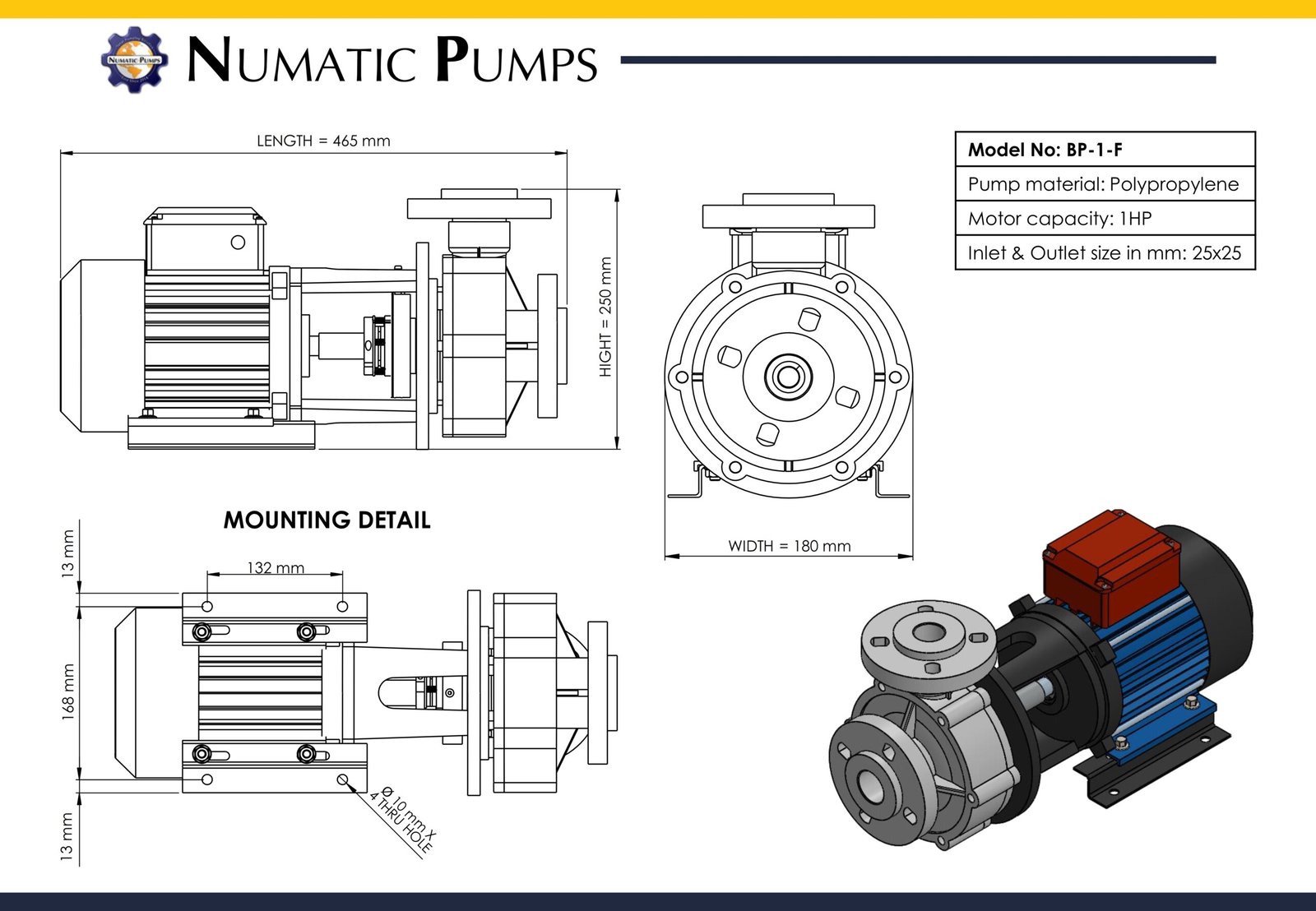

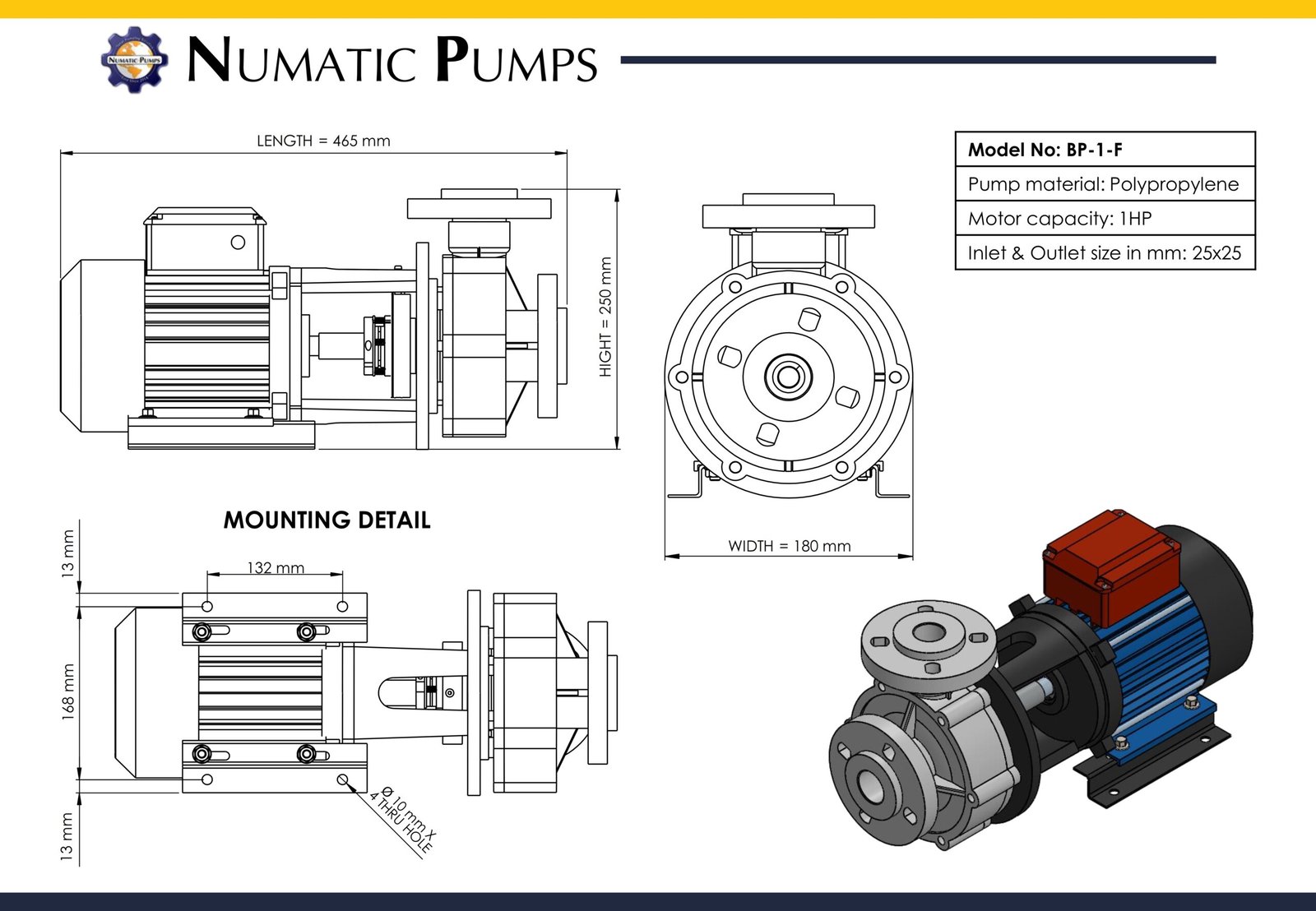

PP Chemical Pumps GA Drawing

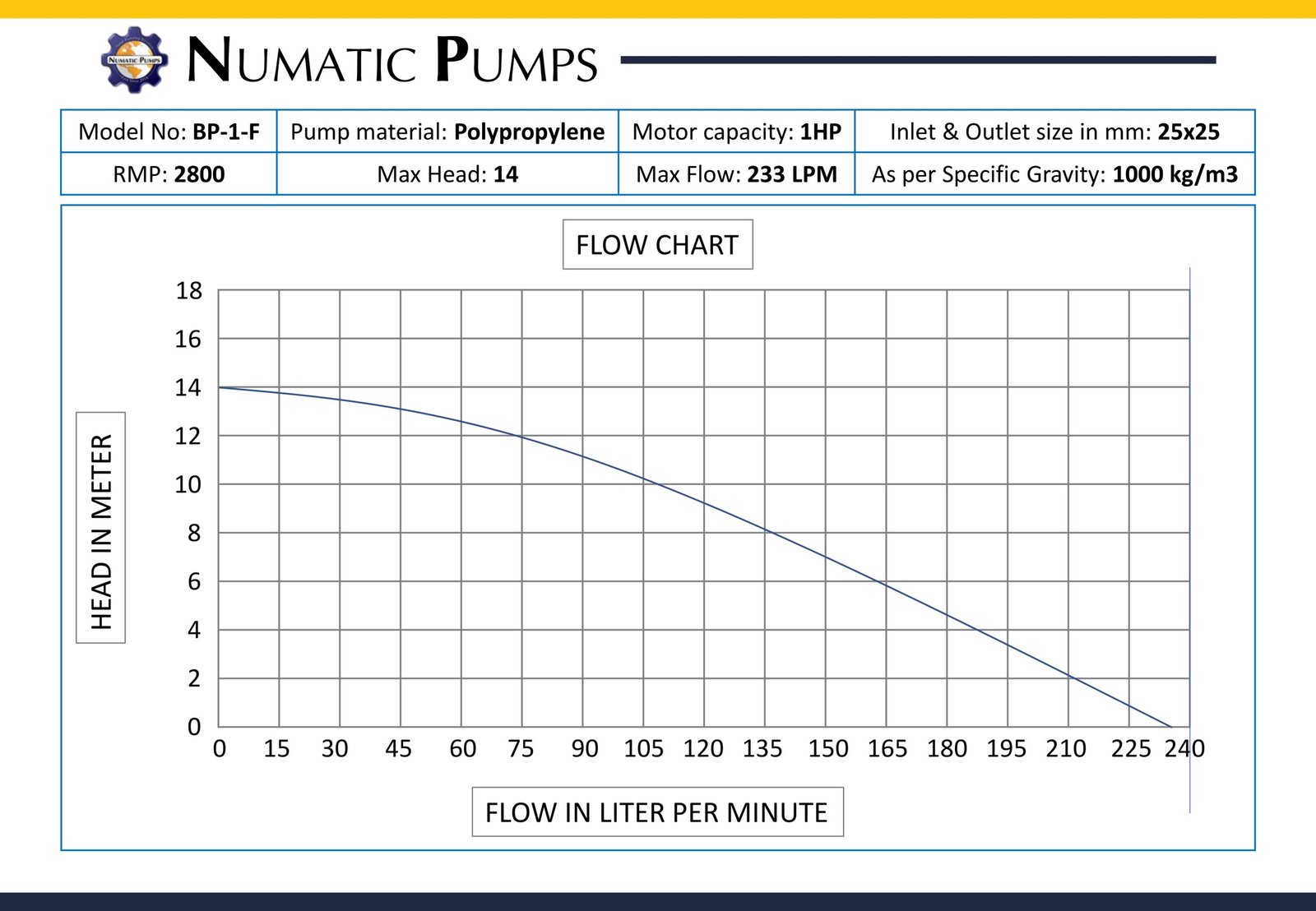

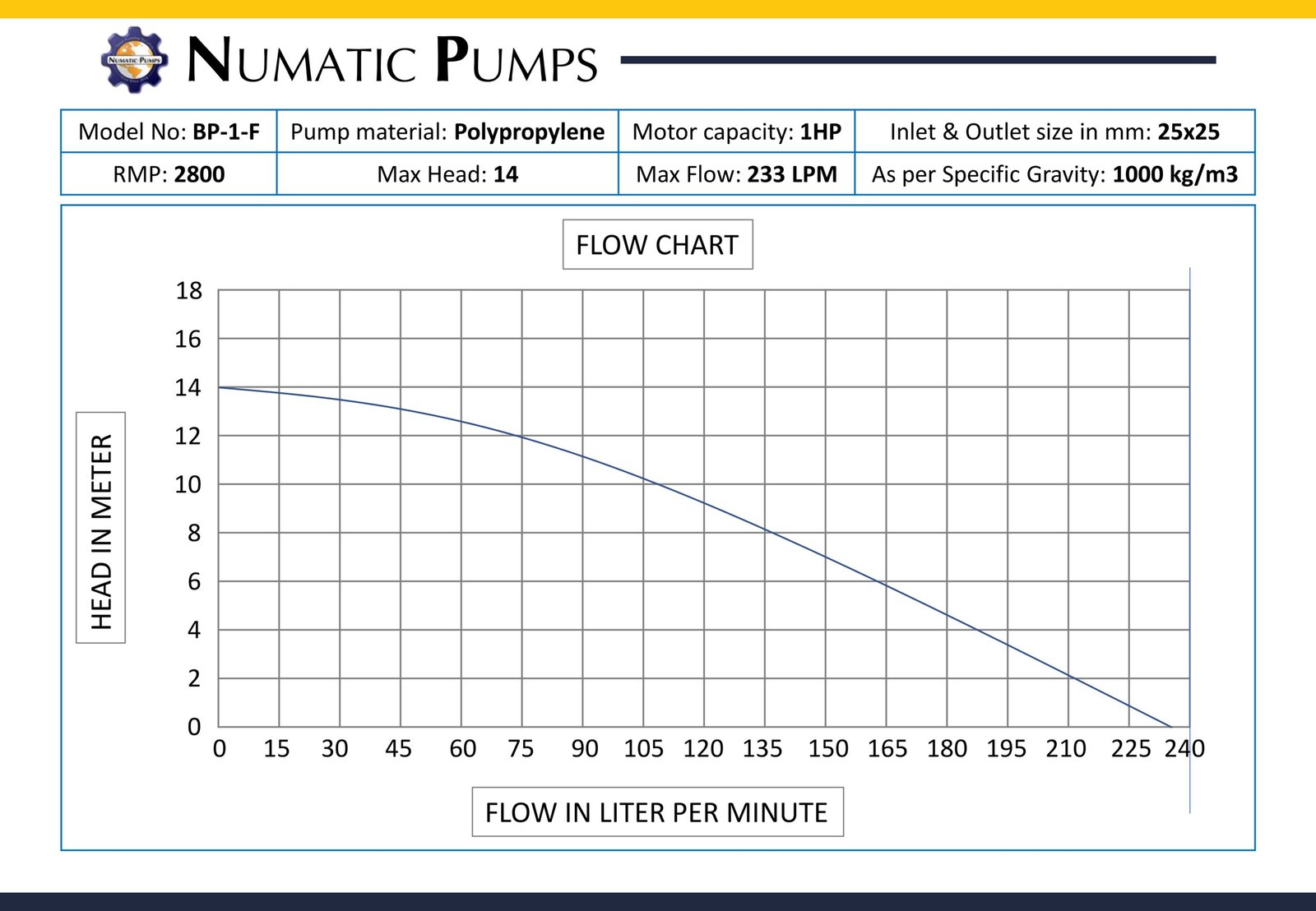

PP Chemical Pumps Performance Curve

About PP Chemical Pumps

We are a Leading PP Chemical Pump Manufacturer & Exporter Company in Mumbai, India. Chemical pumps are used to transfer chemicals and are designed to be resistant to corrosive and abrasive industrial liquids such as fuel, paint, bleach, solvents, etc. Chemical Pumps are of two types Metallic and Non-Metallic. Depending upon liquid PH Value, its type of material is finalized. We have a complete range of Non Metallic Pumps like PP Chemical Pumps, PVDF Chemical Pumps, FEP Chemical Pumps and PFA Chemical Pumps its all depend on temperature.

Chemical pumps are built to transport and resist chemicals and chemical slurries. They are developed and built to handle a wide range of viscosity, corrosiveness, and abrasiveness. Some of these pumps are also metering pumps, providing flow measurement and control for applications requiring accurate chemical quantities. The first step in selecting a chemical pump is evaluating which type of pump is most suited to the application. Because nearly all types of pumps may be built as chemical pumps, there are plenty to choose from.

Chemical Pump should
1) Resist the corrosive effects of multiple Chemicals at various temperatures; and
2) Avoid any unintended emissions that could harm operators or the surrounding area.
3) Chemical pumps can be either a Monoblock Pump or a Closed-Coupled Pump both are Centrifugal Pumps or a positive displacement pump depending on the specific application.

4) The most common Chemical Centrifugal pumps are made in Polypropylene, PVDF and PTFE Material.

Chemical Pumps Manufacturers in India Mumbai

Numatic Pumps is a leading Chemical Pumps Manufacturer in Mumbai, India, offering reliable and corrosion-resistant pumping solutions for handling acids, alkalis, solvents, chemicals, and other aggressive industrial fluids. Our chemical pumps are available in PP, PVDF and other suitable materials, depending on the chemical compatibility and application requirements.

Designed for safe and efficient chemical transfer, our pumps are widely used in chemical processing, pharmaceuticals, electroplating, water treatment, textile, dyes & pigments, and other industrial applications. We manufacture a range of centrifugal and sealless magnetic drive pumps engineered for dependable performance, low maintenance, and excellent chemical resistance.

As an experienced Chemical Pump Manufacturer and Exporter in Mumbai, Numatic Pumps provides customized solutions based on flow rate, pressure, temperature, chemical concentration, and material compatibility.

Key Products: PP Chemical Pumps, Chemical Transfer Pumps, Acid Pumps, PP Centrifugal Pumps, PVDF Pumps, Magnetic Drive Pumps and Chemical Process Pumps.
