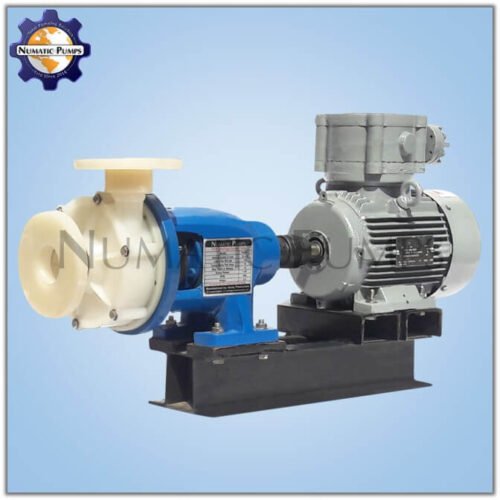

● Pump Type – Centrifugal, Horizontal, Coupled Type, Non Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of PVDF (Polyvinylidene fluoride)
● Shaft – EN8 with Ceramic Sleeve
● Max Head – Up to 23 Meter
● Max Flow – 400 Liter per Minute
● Inlet & Outlet – 40 mm x 40 mm (Flange end Connection)
● Fluid Temperature – 100° C (Max)
● Seal Type – PTFE (Teflon) Bellow with Ceramic Vs GFT Facings, Ceramic Sleeve.
● Impeller – Semi Open Type, Diameter 130mm
For nitric acid transfer, the choice of a centrifugal pump depends mainly on the concentration and temperature of the acid. Chemical-resistant materials are essential to avoid corrosion and leakage.
PVDF (Polyvinylidene Fluoride): Excellent resistance to nitric acid and temperatures up to approximately 90–100°C.
PTFE-lined pumps: Suitable for highly corrosive and concentrated nitric acid.
Polypropylene (PP): Generally recommended for dilute acid and temperatures up to 70–80°C.
SS316L: Suitable only for specific concentrations and temperatures; compatibility should be verified.
1. Nitric acid concentration (%)
2. Operating temperature (°C)
3. Flow rate (m³/hr)
4. Head required (meters)
