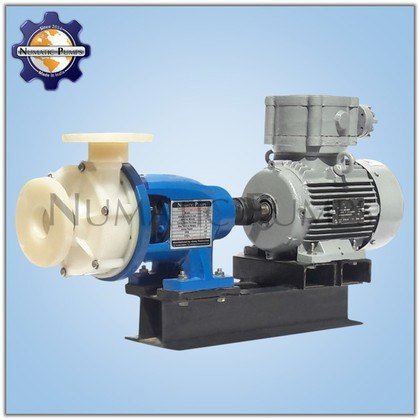

PVDF Coupled Pump PVDFC - 1

PVDF Centrifugal Pump Utited States of America

● Pump Type – Centrifugal, Horizontal, Coupled type, Non Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of PVDF (Polyvinylidene fluoride)
● Shaft – EN8 with Ceramic Sleeve
● Max Head – Upto 10 Meter
● Max Flow – 150 Liter per Minute
● Standard Duty – 5 m3/hr @ 8 Meter
● Inlet & Outlet – 25 mm x 25 mm (Flange end Connection)
● Fluid Temprature – 100° C (Max)
● Seal Type – PTFE (Teflon) Bellow with Ceramic Vs GFT Facings, Ceramic Sleeve.
● Impeller – Semi Open Type, Diameter 100 mm

Our range of PVDF Coupled Pumps

PVDF Centrifugal Pump

We are a leading PVDF Centrifugal Pump Manufacturers and Supplier in Mumbai India. PVDF Centrifugal Pumps are robust and energy-efficient and ensure noise & vibration-free performance. Appreciated for less maintenance, these are widely used in cement, textile, Acid, Corrosion, and Hazardous chemicals. PVDF Centrifugal Pump is a Lifeline for organic and inorganic fluids, sugar and petrochemicals, and many other industries.

To fulfill the diverse requirements of these industries, Our Manufactured PVDF Centrifugal Pumps are offered in various specifications. Further, these can be customized as per the requirements of clients in Stainless Steel, Polypropylene, and PVDF Materials. Our PVDF Centrifugal Pump is a semi-open impeller-type pump, which requires less floor space. Manufactured using the latest technology, these are durable and in accordance with set industry standards. With our rich industry experience, we trade, export, and supply an extensive range of PVDF Centrifugal Pumps. At the vendors’ end, this pump is manufactured using quality-assured components and progressive technology. It is a horizontal, single-stage, radially split volute casing pump of back-pull out type design.

PVDF Centrifugal Pumps applications

PVDF is known for its superior chemical and temperature resistance. PVDF can bear a temperature up to 110°C. PVDF Centrifugal Pumps also called PVDF Lined Centrifugal Pumps are commonly used for chemicals such as Fresh Water, Salt Water, DI Water, Amyl Acetate, Benzene Sulfonic Acid, Citric Acid, Acetic Acid, Diesel Fuel, Fluosilicic Acid, Formaldehyde, Aluminium Potassium Sulfate, Muriatic Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid, Potassium Permanganate, Sodium Hypochlorite, Sulfuric Acid, and many more.

Benefits of PVDF Centrifugal Pumps:

* PVDF Centrifugal Pumps are designed for rough and tough conditions and can create high pressures.
* PVDF Pump Mould contains thick-walled vacuum-proof plastic housing in one piece and has no additional sealing points within the pump followings.
* PVDF Lined housing is completely encapsulated in a metal body to prevent any damage to the same.
* Any pipeline forces are absorbed by the metal shell in PVDF Lined Pumps.
* Ensure trouble-free working because of its heavy-duty pedestal.
* A PVDF Centrifugal Pump modular system ensures economical spare parts stocking.
* PVDF Centrifugal Pumps are coated with epoxy paint to give external protection to the pump and base plate against corrosion damage.

PVDF Pumps Manufacturers in Ahmedabad

PVDF Monoblock Pumps

PVDF Lined Pumps

PVDF Coated Pumps

PVDF Centrifugal Pump

PVDF Pump Manufacturers in India

PVDF HCL Pumps Manufacturers in Gujarat

PVDF Hydrochloric Acid Pumps in Vapi

PVDF Coupled Pump Manufacturers in ankleshwar

PVDF Pump Exporters in India

PVDF Pump Manufacturers in India

PVDF Horizontal Pump

PVDF Pump Exporters in India

PVDF Pump Suppliers in India

PVDF Sulfuric Acid Pumps in ankleshwar

PVDF pumps for Acid Transfer

PVDF Process Pump

PVDF Acid Pump

PVDF Chemical Pump

PVDF Acid Transfer Pump manufacturers ankleshwar

PVDF Non Metallic Pump

PVDF Acid Circulation Pump

PVDF Nitric Acid Pumps

PVDF Pumps for Acid Circulation

Why are PVDF Centrifugal Pump used?

PVDF is well-known for its high chemical resistance. Fresh water, salt water, DI water, Amyl Acetate, Benzene Sulfonic Acid, Citric Acid, Diesel Fuel, Fluosilicic Acid, Formaldehyde, Muratic Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid, Potassium Permanganate, Sodium Hypochlorite, Sulfuric Acid, and many other chemicals are commonly used for Kynar Pumps or PVDF Centrifugal Pumps.
PVDF Process pumps are employed in several process applications. They are extremely dependable and provide minimal operating costs in the process sector. Polyvinylidene fluoride is frequently used because of its outstanding chemical inertness and high age resistance. Polyvinylidene fluoride (PVDF) has the distinct benefit of being simple to process using all of the convection processes commonly employed in the plastics industry. PVDF polymerized using its unique technique has a higher degree of crystalline than other procedures, resulting in greater thermomechanical characteristics, among other things.
