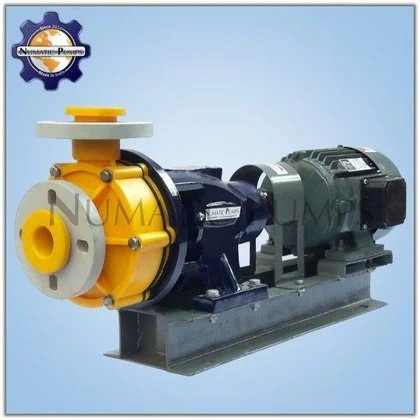

PP Centrifugal Pump PPC-5
● Pump Type – Centrifugal, Horizontal, Coupled Type, Non Self Priming Pump
● Pump Material – Casing, Impeller and Back Plate is Made of PP (Polypropylene) Material
● Shaft – EN 8 with Ceramic Sleeve
● Max Head – Up to 31 Meter on 1 specific gravity.
● Max Flow – 633 Leter per Minute on 1 specific gravity.
● Negative Suction – Maximum 3 Meter with foot valve
● Inlet & Outlet – 75 mm x 40 mm (Flange end Connection)
● Fluid Temprature – 70° C (Max)
● Seal Type – PTFE (Teflon) Bellow with Ceramic Vs GFT Facings, Ceramic Sleeve.
● Impeller – Semi Open Type, Diameter 160 mm
Our range of PP Coupled Pumps
Plastic Chemical Pumps
Numatic Pumps has been delivering plastic chemical pumps for over ten years, and we understand how important it is to find the perfect solution for your chemical operation. Our plastic chemical pumps are ideal for moving low-viscosity fluids such as harsh chemicals, acids, alkalis, or highly unclean liquids containing particles. Our chemical centrifugal pumps are distinguished by their extended service life and ease of maintenance. Chemical centrifugal pumps are available in PP, PVDF, FEP and PFA, making them excellent for applications that require dependable pumps that are compatible with a variety of fluids.
As a plastic chemical pumps provider for over 10 years, we understand how important it is to find the correct solution for your chemical process. A pump that is incompatible with your chemical might cause swelling, dissolving, or brittleness, eventually leaking and failing. This is why the materials of a chemical transfer pump, as well as the temperature and concentration of the fluid being handled, must be given great consideration. Numatic Pumps has a tried and established solution for your chemical process, whether you need a chemical dosing pump, a barrel emptying pump, or one for tank-to-tank transfer.
What is a PP Centrifugal Pump?
PP Centrifugal pump are also known as a Hydrodynamic pump or dynamic pressure pump. It works on the principle of centrifugal force, which is usually quick to install and easy to repair.
PP Centrifugal Pumps is among the largest Centrifugal Pumps manufacturer and used in India. We manufacture and supply excellent Polypropylene Centrifugal Pumps like horizontal and Vertical pumps. We are using latest technology in order to meet variegated demands of our client. Our pumps are designed and manufactured in such a way that it can be easily used in chemical, Acids, and Solvents Industries. There is a great demand in Water and Wastewater industries, Sugar industries, Steel industries, Pharmaceuticals, Acid Industries, power stations, handing of hydrocarbons, in industries such as irrigation, water desalination plants.
PP Centrifugal Pumps are used to move Chemical and Acid in an industrial process. Centrifugal Process Pumps can be any variety of pump types like horizontal and vertical depending on the application. They can be either heavy-duty centrifugal pumps used to pump corrosive or abrasive fluids. Alternatively, they can also be positive displacement pumps.
