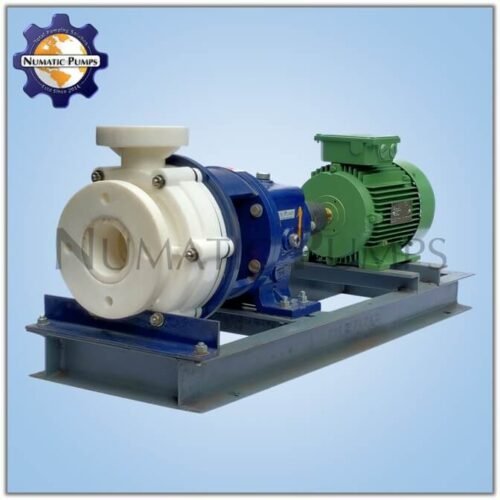

PP Centrifugal Pump PPC - 10

Polypropylene PP Coupled Centrifugal Horizontal Pumps Manufacturers

● Pump Type – Centrifugal, Horizontal, Coupled Type, Non Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of PP (Polypropylene)
● Shaft – EN8 with Ceramic Sleeve
● Max Head – Up to 48 Meters on 1 specific gravity.
● Max Flow – 830 Leter per Minute on 1 specific gravity.

● Standard Duty – 25 m3/hr @ 40 Meter
● Inlet & Outlet – 50 mm x 40 mm (Flange end Connection)
● Fluid Temprature – 70° C (Max)
● Seal Type – PTFE (Teflon) Bellow with Ceramic Vs GFT Facings, Ceramic Sleeve.
● Impeller – Semi Open Type, Diameter 190mm

Our range of PP Coupled Pumps

HCL Pumps

Numatic Pumps provides various options for HCL Acid (Muriatic Acid) pumps! We have a pump for Hydrochloric Acid (Muriatic Acid), Sulphuric Acid, Nitric Acid, and Acetic Acid in practically any application ranging from 15 LPM to 650 LPM. In pumping the chemical Hydrochloric Acid (Muriatic Acid) at room temperature, a centrifugal sealless magnetic drive Acid pump composed of Polypropylene or PVDF, Encapsulated Impeller, and Carbon or Mica Teflon Bushing is recommended.

How to Choose a Hydrochloric Acid Pump

HCL Acid is a highly corrosive solution of hydrogen chloride in water. It is a clear and colorless inorganic acid with several uses in various industries. It is advised to use non-metallic pumps since hydrochloric acid can corrode any metal component that comes into touch with it. It is naturally present in stomach acid. Since it was originally manufactured from green vitriol and rock salt, and subsequently from sulfuric acid, it was known as spirits muriatic acid salt and acidum salis. Depending on the concentration and temperature, the chemical Hydrochloric Acid can also be heavy. If the specific gravity is more than 1.1, a trimmed impeller is required to avoid decoupling or overloading the motor.


Seeking for Acid Transfer Centrifugal Coupled Pump Numatic Pumps has many choices! From 50 LPM to 1200 LPM, in both type Mechanical shaft seal type and Sealless Type Magnetic Drive Pump.

Numatic Pump has all solutions for Pumping any Chemical and Viscosity under one roof may be it a

Acidic Chemicals like Acetic acid, Formic acid, Hydrochloric acid, Nitric acid, Perchloric acid, Phosphoric acid, Sulfuric acid, Ammonium hydroxide, Potassium hydroxide or Sodium hydroxide,

Alkaline chemicals like Ammonium hydroxide, Calcium hydroxide, Potassium hydroxide, Sodium carbonate, Hydroxide, Peroxide, Silicates, or Trisodium phosphate.

We have all solutions from Ambient to 150 degrees Celsius in both Negative and Positive Suction.
