SS Milk Pumps
Pump Type
Coupled Dairy Pumps
Pump Model No: SSCD-0.5
● Pump Type – Centrifugal, Horizontal, Coupled type, Non Self Priming Pump,
● Pump Material – Casing, Impeller Shaft and Stuffing Box is SS 316 Material.
● Max Head – Upto 10 Meter
● Max Flow – 150 Liter Per Minute (9000 LPH)
● Standard Duty – 4.5 m3/hr @ 5 Meter
● Inlet & Outlet – 25 mm x 25 mm, Dairy Union or Triclove Jionts
● Openable Casing – Wing or Eye Nuts
● Motor Cover – Stainless Steel (SS)
● Fluid Temprature – 110° C (Max)
● Seal Type – Mechanical Seal Silicon v/s Silicon
● Impeller – Open Type
● Trolley – Stainless Steel with caster wheel, (Optional) Rs.4,000/-
Pump Model No: SSCD-1
● Pump Type – Centrifugal, Horizontal, Coupled type, Non Self Priming Pump,
● Pump Material – Casing, Impeller Shaft and Stuffing Box is SS 316 Material.
● Max Head – Upto 14 Meter
● Max Flow – 250 Liter Per Minute (15000 LPH)
● Standard Duty – 10 m3/hr @ 10 Meter
● Inlet & Outlet – 25 mm x 25 mm, Dairy Union or Triclove Jionts
● Openable Casing – Wing or Eye Nuts
● Motor Cover – Stainless Steel (SS)
● Fluid Temprature – 110° C (Max)
● Seal Type – Mechanical Seal Silicon v/s Silicon
● Impeller – Open Type
● Trolley – Stainless Steel with caster wheel, (Optional) Rs.4,000/-
Pump Model No: SSCD-1.5
● Pump Type – Centrifugal, Horizontal, Coupled type, Non Self Priming Pump,
● Pump Material – Casing, Impeller Shaft and Stuffing Box is SS 316 Material.
● Max Head – Upto 15 Meter
● Max Flow – 275 Liter Per Minute (16500 LPH)
● Standard Duty – 12 m3/hr @ 10 Meter
● Inlet & Outlet – 38 mm x 38 mm, Dairy Union or Triclove Jionts
● Openable Casing – Wing or Eye Nuts
● Motor Cover – Stainless Steel (SS)
● Fluid Temprature – 110° C (Max)
● Seal Type – Mechanical Seal Silicon v/s Silicon
● Impeller – Open Type
● Trolley – Stainless Steel with caster wheel, (Optional) Rs.4,000/-
Pump Model No: SSCD-2
● Pump Type – Centrifugal, Horizontal, Coupled type, Non Self Priming Pump,
● Pump Material – Casing, Impeller Shaft and Stuffing Box is SS 316 Material.
● Max Head – Upto 16 Meter
● Max Flow – 300 Liter Per Minute (18000 LPH)
● Standard Duty – 13.5 m3/hr @ 10 Meter
● Inlet & Outlet – 50 mm x 38 mm, Dairy Union or Triclove Jionts
● Openable Casing – Wing or Eye Nuts
● Motor Cover – Stainless Steel (SS)
● Fluid Temprature – 110° C (Max)
● Seal Type – Mechanical Seal Silicon v/s Silicon
● Impeller – Open Type
● Trolley – Stainless Steel with caster wheel, (Optional) Rs.4,000/-
Pump Model No: SSCD-3
● Pump Type – Centrifugal, Horizontal, Coupled type, Non Self Priming Pump,
● Pump Material – Casing, Impeller Shaft and Stuffing Box is SS 316 Material.
● Max Head – Upto 25 Meter
● Max Flow – 400 Liter Per Minute (24000 LPH)
● Standard Duty – 12 m3/hr @ 12 Meter
● Inlet & Outlet – 50 mm x 38 mm, Dairy Union or Triclove Jionts
● Openable Casing – Wing or Eye Nuts
● Motor Cover – Stainless Steel (SS)
● Fluid Temprature – 110° C (Max)
● Seal Type – Mechanical Seal Silicon v/s Silicon
● Impeller – Open Type
● Trolley – Stainless Steel with caster wheel, (Optional) Rs.4,000/-
Pump Model No: SSCD-5
● Pump Type – Centrifugal, Horizontal, Coupled type, Non Self Priming Pump,
● Pump Material – Casing, Impeller Shaft and Stuffing Box is SS 316 Material.
● Max Head – Upto 35 Meter
● Max Flow – 585 Liter Per Minute (35100 LPH)
● Standard Duty – 18 m3/hr @ 20 Meter
● Inlet & Outlet – 50 mm x 38 mm, Dairy Union or Triclove Jionts
● Openable Casing – Wing or Eye Nuts
● Motor Cover – Stainless Steel (SS)
● Fluid Temprature – 110° C (Max)
● Seal Type – Mechanical Seal Silicon v/s Silicon
● Impeller – Open Type
● Trolley – Stainless Steel with caster wheel, (Optional) Rs.4,000/-
Pump Model No: SSCD-7.5
● Pump Type – Centrifugal, Horizontal, Coupled type, Non Self Priming Pump,
● Pump Material – Casing, Impeller Shaft and Stuffing Box is SS 316 Material.
● Max Head – Upto 40 Meter
● Max Flow – 700 Liter Per Minute (42000 LPH)
● Standard Duty – 21 m3/hr @ 20 Meter
● Inlet & Outlet – 50 mm x 38 mm, Dairy Union or Triclove Jionts
● Openable Casing – Wing or Eye Nuts
● Motor Cover – Stainless Steel (SS)
● Fluid Temprature – 110° C (Max)
● Seal Type – Mechanical Seal Silicon v/s Silicon
● Impeller – Open Type
● Trolley – Stainless Steel with caster wheel, (Optional) Rs.4,000/-

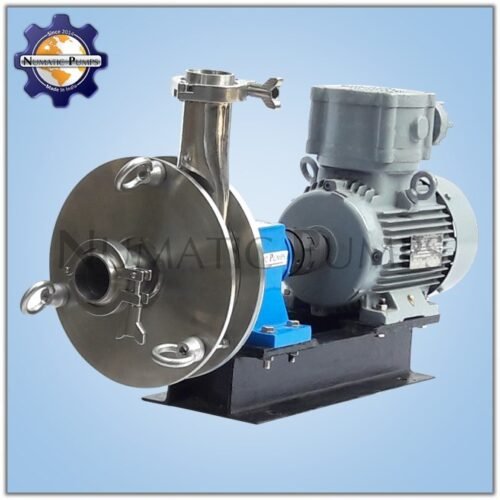

SS Sanitary Dairy Pump
Our SS Sanitary Dairy Pump are highly demanded in Milk, Milk Products, Food, Beverages, Drugs, and Mineral Water Industries. SS Dairy and Sanitary Pump made from SS316L Food Grade Material for Hygienic and Cleanliness purpose for high quality dairy milk Products. SS Sanitary Dairy Centrifugal Pump commonly used in numerous milk-processing applications. This food-grade Dairy pump on cart is a typical Milk Industry Pump characterized by gentle transfer of milk products. Thanks to its smooth pumping, this standard sanitary and dairy centrifugal pump is used as typical milk transfer pump. This Stainless Steel Pump for milk designed for stationary and mobile milk processing applications. Numatic Pumps offers you the most adequate product, installation and service for every necessity, for your complete Plant incorporating advanced levels of automation. Numatic Pumps are reliable supplier for any type of made to measure solution for the Dairy Processing and Production Industries.
