PP Vertical Pumps
Pump Type
Vertical Centrifugal Pumps
Pump Model No: PPV-0.5
● Pump Type – Centrifugal, Vertical, Coupled type, Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of PP (Polypropylene) Material
● Shaft – SS 316 / Titanium
● Pump Leanth – 400 mm
● Max Head – Upto 9 Meters
● Max Flow – 85 Leter per Minute
● Inlet & Outlet – 25 mm x 25 mm (BSP Threaded end Connection)
● Motor Specification – 0.5 HP, NFLP, 2800 RPM, 50 Hz, 3 Phase, Hindustan Make.
● Fluid Temprature – 70° C (Max)
● Seal Type – Sealless
● Impeller – Open Type
Pump Model No: PPV-1
● Pump Type – Centrifugal, Vertical, Coupled type, Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of PP (Polypropylene) Material
● Shaft – SS 316 / Titanium
● Pump Leanth – 400 mm
● Max Head – Upto 10 Meters
● Max Flow – 150 Leter per Minute
● Inlet & Outlet – 25 mm x 25 mm (BSP Threaded end Connection)
● Motor Specification – 1 HP, NFLP, 2800 RPM, 50 Hz, 3 Phase, Hindustan Make.
● Fluid Temprature – 70° C (Max)
● Seal Type – Sealless
● Impeller – Open Type
Pump Model No: PPV-1.5
● Pump Type – Centrifugal, Vertical, Coupled type, Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of PP(Polypropylene) Material
● Shaft – SS 316 / Titanium
● Pump Leanth – 400 mm
● Max Head – Upto 10 Meters
● Max Flow – 150 Leter per Minute
● Inlet & Outlet – 25 mm x 25 mm (BSP Threaded end Connection)
● Motor Specification – 1.5 HP, NFLP, 2800 RPM, 50 Hz, 3 Phase, Hindustan Make.
● Fluid Temprature – 70° C (Max)
● Seal Type – Sealless
● Impeller – Open Type
Pump Model No: PPV-2
● Pump Type – Centrifugal, Vertical, Coupled type, Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of PP(Polypropylene) Material
● Shaft – SS 316 / Titanium
● Pump Leanth – 400 mm
● Max Head – Upto 12 Meters
● Max Flow – 250 Leter per Minute
● Inlet & Outlet – 32 mm x 32 mm (BSP Threaded end Connection)
● Motor Specification – 2 HP, NFLP, 2800 RPM, 50 Hz, 3 Phase, Hindustan Make.
● Fluid Temprature – 70° C (Max)
● Seal Type – Sealless
● Impeller – Open Type
Pump Model No: PPV-3
● Pump Type – Centrifugal, Vertical, Coupled type, Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of PP(Polypropylene) Material
● Shaft – SS 316 / Titanium
● Pump Leanth – 400 mm
● Max Head – Upto 15 Meters
● Max Flow – 333 Leter per Minute
● Inlet & Outlet – 40 mm x 40 mm (BSP Threaded end Connection)
● Motor Specification – 3 HP, NFLP, 2800 RPM, 50 Hz, 3 Phase, Hindustan Make.
● Fluid Temprature – 70° C (Max)
● Seal Type – Sealless
● Impeller – Open Type
Pump Model No: PPV-5
● Pump Type – Centrifugal, Vertical, Coupled type, Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of PP(Polypropylene) Material
● Shaft – SS 316 / Titanium
● Pump Leanth – 400 mm
● Max Head – Upto 26 Meters
● Max Flow – 633 Leter per Minute
● Inlet & Outlet – 75 mm x 40 mm (BSP Threaded end Connection)
● Motor Specification – 5 HP, NFLP, 2800 RPM, 50 Hz, 3 Phase, Hindustan Make.
● Fluid Temprature – 70° C (Max)
● Seal Type – Sealless
● Impeller – Open Type

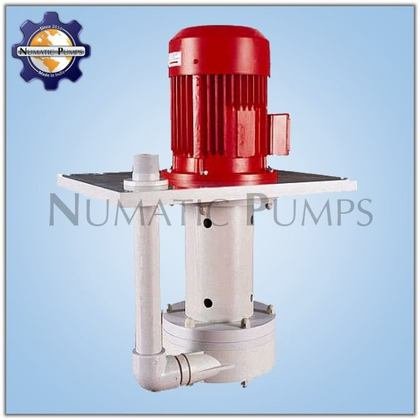

PP Vertical Pumps
We are one of a leading Manufacturers of PP Vertical Pumps. We have a long series of PP Vertical Pump from 1 HP up to 20 HP. We are specialised in Fabricating as per Client Specification and needs. PP Vertical Pumps are compact design used and installed where the saving of space is important factor or mechanical shaft seal not required. These pumps are designed and used for highly corrosive nature of liquid is to be handled or where non-adherence of product or zero metallic contamination is must. Plastic Vertical Pumps are equally ideal for continuous or intermittent service for handling corrosive as well as ultra-pure chemicals without fear of corrosion or contamination. All wetted components are molded Polypropylene engineering plastic. These pumps are very cost effective than high alloy or exotic metal pumps, and are highly useful where all other metal pumps are completely inadequate. PP Vertical Pumps are chemical resistant and all contact parts are made from Polypropylene with PTFE sealing-rings. Provides excellent resistance to corrosive and hazardous acid like HCL, H2SO4 (30% TO 60%), HNO3 etc.
Our PP Vertical Pumps, which are manufactured in India, have a good track record in the global market, particularly in Gulf countries.
How PP Vertical Pump works?
PP Vertical Pumps work when Chemical or Acid enters the pump at the bottom through a bell-shaped part called the suction bell. From there it moves into the Casing impeller, which raises the water’s velocity. PP Vertical Pump has a type of centrifugal vertically oriented shaft, with the suction and discharge connections in the casing in line with each other, rather than requiring a change of direction like end-suction pumps. Vertical Pumps are used when there is an issue Self Priming and Leakage problem. PP Vertical Pumps are sealless Pump.
Sealless PP Vertical Pump Sailent features
1) There is no mechanical seal or stuffing box.
2) All packing, bushes, or internal bearings of PP Vertical Pumps, are submerged hence no external lubricant is required.
3) Reduced production downtime due to the qualities mentioned above.
4) The wet-end pieces are PP solid moulded to withstand corrosion and erosion.
5) The semi-open impeller utilised in our PP Vertical Pumps is suitable for clean and dirty fluids.
6) The Electrical Motor is not submerged and is located outside the suction tank.

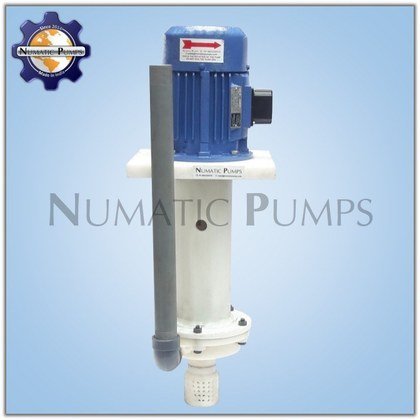

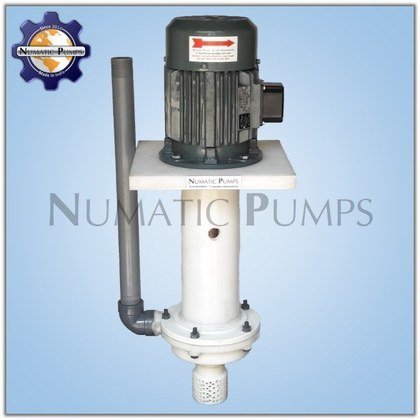

Polypropylene Vertical Pump
Numatic Pumps are leading manufacturer of Polypropylene Vertical Pump also Known as Vertical Sump Pump or Long Shaft Pump Sealless Pumps.
Polypropylene Vertical Pump are Seal less and self primed pumps as the Impeller is located at the bottom of the pumps and does not require Mechanical seal. PP Vertical pumps are mostly used in ETP Plants and Scrubbers and where leakages cause big problem. This pump does not have any mechanical seal agreements hence are very cost effective and less headache of maintenance.
When is a polypropylene vertical pump an optimal solution?
Polypropylene vertical pumps are a tried-and-true workhorse pump that may be found in industrial settings all around the world. Oil and gas, petrochemical, acid, chemical, electricity, desalination, and mining are just a few of the sectors that benefit from this pump design. Polypropylene Vertical Pumps are intended to handle acidic, toxic, and corrosive acids and chemicals in difficult applications. Vertical pumps were first developed for agricultural use. Verticals are now widely chosen as a robust answer to typical issues such as leaky and corrosive environments, as well as situations requiring low flow and high head pumps. Despite this, there is sometimes a misunderstanding among design engineers, plant managers, and site operators regarding whether a vertical pump is the best option over typical horizontal pumps.
Advantages of Polypropylene Vertical Pumps
Scalability
To provide a positive suction head, the length of a Polpropylne vertical pump may be extended below ground as needed. With the option to adjust, basically right-sizing by stacking stages of impellers as needed, this versatile design gives a distinct benefit. Because the pumps enable flexible installations to fit every facility’s present and future demands, this feature allows for phasing and modification over time, resulting in lower operating costs.
Size
When compared to their horizontal pump counterparts, polypropylene vertical pumps can fit into tight locations and have a significantly smaller footprint. In places where space is limited, this is a critical factor. Furthermore, the foundation materials in a polypropylene vertical pump may be improved, resulting in less wear and tear, less plant downtime, and increased pump life.
Efficiency
Priming is another issue that polypropylene verticals may avoid because many of them are self-priming. This implies that in a vertical, the operator does not need to remove air from the pump, vacuum it, and fill it with liquid before turning it on. A vertical pump, on the other hand, does not require liquid to start pumping and will work effectively if a minimal level is reached for the first stage impeller to begin pumping.
