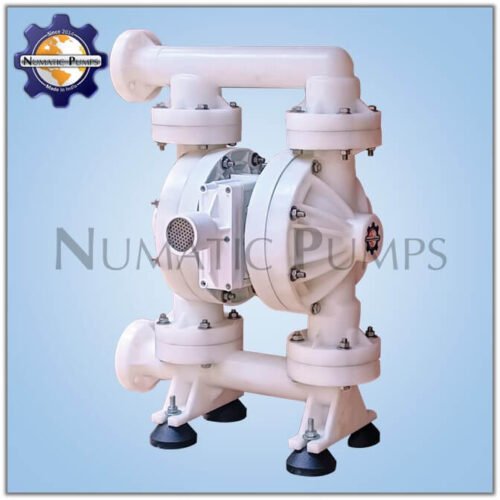

Polypropylene Diaphragm Pumps are designed for Acidic and Flammable Media use. PP Diaphragm Pump can easily pump from clean, light Acidic viscosity fluids to corrosive, abrasive medium viscosity fluids and can transfer large particles without damage. Due to their pneumatic mechanism, they could be used in potentially explosive areas. PP Air Operated Double Diaphragm Pumps can run with a continuous supply of compressed air. Polypropylene Diaphragm Pumps can be versatile enough to help provide dewatering functions or transfer weak acids from storage Barrels or Drums. PP AODD Pumps are lightweight, can be easily transported where needed, and are equipped with a pneumatic operation to reduce exhaust and spark hazards. PP AODD Pumps are Self-priming Pumps and are capable of Dry Running. Numatic Pumps Diaphragm Pump is of a bolted type and offers a number of advantages that make them perfect for an almost endless variety of uses. PP Air Operated Double Diaphragm Pumps are air operated, they are used in Hazardous, Acidic and Flammable areas.
A Diaphragm Pump is a positive displacement pump that pumps fluid by combining the reciprocating action of a rubber, thermoplastic, or Teflon Diaphragm with appropriate valves on either side of the Diaphragm (check valves, butterfly valves, flap valves, or any other type of shut-off valves).
The diaphragm in a diaphragm pump is sealed, with one side submerged in the fluid being pumped and the other in either hydraulic fluid or air. The pump chamber’s volume fluctuates as the diaphragm flexes. The fluid cannot flow backward thanks to two non-return check valves. The pressure decreases and fluid is drawn into a diaphragm pump chamber when its capacity is increased (by pushing the diaphragm up). The fluid that was previously drawn in is forced out when the chamber pressure increases as a result of the decreased volume (caused by the diaphragm sliding down). The cycle is finally completed when the diaphragm rises, drawing fluid into the chamber.
This motion is similar to that of an internal combustion engine’s cylinder. Diaphragm pumps transport, compress, and expel the medium without the need for lubrication because they create an airtight seal between the driving mechanism and the compression chamber.
Diaphragm pumps are widely used in industries where reliable handling of chemicals, corrosive, viscous, abrasive, or sensitive liquids is required. Their ability to handle solids and run dry makes them particularly useful for demanding transfer applications.
Common Applications
Chemical Industry: Acids, alkalis, solvents, and other chemicals are transferred in the chemical industry.
Pharmaceutical Industry: Managing sensitive and process liquids in the pharmaceutical industry.
Food & Beverage: Transfer of viscous and shear-sensitive food and beverage products.
Paint and Coating Industry: Pumping paints, coatings, pigments, and inks.
Wastewater Treatment: Chemicals, sludge, and contaminated liquids are dosed and transferred as part of wastewater treatment.
Electroplating Industry: Plating chemicals are transferred and circulated in the electroplating industry.
Textile Industry: Process liquids, chemicals, and dyes are handled in the textile industry.
Oil & Gas Industry: Oil and gas industry: transportation of difficult fluids, chemicals, and oils.
Mining Industry: Managing abrasive slurries and liquids with suspended solids is part of the mining industry.
Printing Industry – Transfer of inks, solvents and speciality fluids.
PP (polypropylene) AODD (air-operated double diaphragm) pumps are a type of positive displacement pump that are designed to handle a variety of fluids, including corrosive and abrasive materials. The pumps are constructed of polypropylene, a thermoplastic polymer that is known for its excellent chemical resistance and durability.
AODD pumps are powered by compressed air and use a diaphragm to transfer fluid from the suction side of the pump to the discharge side. The diaphragm is made of a flexible material that is able to expand and contract as air is alternately introduced to and removed from the pump chambers.
PP AODD pumps are commonly used in industrial and chemical processing applications, as well as in the transfer of food and beverage products. They are popular because of their versatility, ease of maintenance, and ability to handle a wide range of fluid viscosities and temperatures.
When selecting a PP AODD pump, it is important to consider factors such as flow rate, pressure, and the specific characteristics of the fluid being pumped. Proper installation, operation, and maintenance of the pump are also critical for ensuring optimal performance and longevity.
PP (Polypropylene) AODD (air-operated double diaphragm) pump manufacturers design, develop, and produce pumps made from polypropylene that are specifically designed for fluid transfer applications. Here are some of the key steps involved in the manufacturing process:
Design: PP AODD pump manufacturers work with engineers to design pumps that meet the specific requirements of their intended applications. This involves selecting the appropriate materials, determining the pump’s flow rate and pressure requirements, and designing the pump’s internal components.
Material selection: Polypropylene is selected as the primary material for the pump’s wetted components, including the pump body, diaphragms, and valves. This is because polypropylene is highly resistant to a wide range of chemicals and is capable of withstanding harsh operating conditions.
Production: The manufacturing process typically involves injection molding, which is a manufacturing process that involves injecting molten polypropylene into a mold to create the desired shape of the pump’s components. The components are then assembled and tested to ensure that they meet the manufacturer’s specifications.
Testing: PP AODD pump manufacturers typically perform a variety of tests on their products to ensure that they meet the required performance standards. These tests may include pressure testing, flow rate testing, and chemical resistance testing.
Packaging and shipping: Once the pumps have been manufactured and tested, they are packaged and shipped to distributors, dealers, or end-users.
PP AODD pump manufacturers typically work closely with their customers to ensure that their products meet the specific needs of their applications. This may involve customizing the pump’s design or materials to suit the customer’s requirements. By providing high-quality pumps that are designed to meet the needs of their customers, PP AODD pump manufacturers play an important role in ensuring the safe and efficient transfer of fluids in a wide range of industries.
Diaphragm pumps are positive displacement pumps that use a flexible diaphragm to transfer liquids. They are widely used in chemical, pharmaceutical, food processing, water treatment, and other industries. The main types are classified by their operating mechanism, drive system, and construction materials.
1. Air-Operated Double Diaphragm (AODD) Pumps
Operated by compressed air, these pumps use two diaphragms to transfer liquids. They are suitable for corrosive chemicals, viscous liquids, slurries, and applications requiring self-priming capability.
Common materials: PP, PVDF, SS 316, and Aluminum.
2. Mechanically Operated Diaphragm Pumps
A motor-driven mechanical linkage moves the diaphragm to pump liquid. These pumps are used for dosing, metering, and controlled liquid transfer.
3. Hydraulically Operated Diaphragm Pumps
Hydraulic fluid drives the diaphragm, making this design suitable for accurate metering and applications requiring controlled pressure and flow.
4. Solenoid-Operated Diaphragm Pumps
Electromagnetic actuation moves the diaphragm in repeated strokes. These compact pumps are commonly used for low-flow chemical dosing and water treatment.
5. Motor-Driven Diaphragm Metering Pumps
An electric motor drives a mechanism that moves the diaphragm. They are used for controlled chemical injection in industrial processes.
