NUMATIC PUMPS

SS Coupled Pump SSC-5

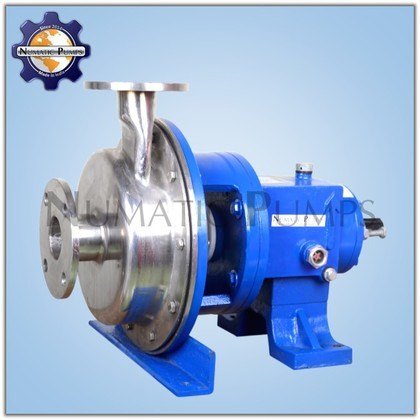

SS Centrifugal Coupled Pump

● Pump Type – Centrifugal, Horizontal, Coupled Type, Non Self Priming Pump,
● Pump Material – Casing, Impeller and Back Plate is Made of SS 316 Material.
● Shaft – SS 316
● Max Head – Upto 40 Meter
● Max Flow – 433 Leter per Minute
● Standard Duty – 10 m3/hr @ 21 Meter
● Inlet & Outlet – 32mm x 25mm (Flange end Connection)
● Other Model – (40x25x150) (40x25x200) (80x50x150)
● Fluid Temprature – 100° C (Max)
● Seal Type – Single Spring Carbon v/s Silicon with Suitable Elastomer
● Impeller – Fully Opened Type, Diameter 180mm
