NUMATIC PUMPS

SS Motorised Screw Barrel Pumps - SSMSB-1

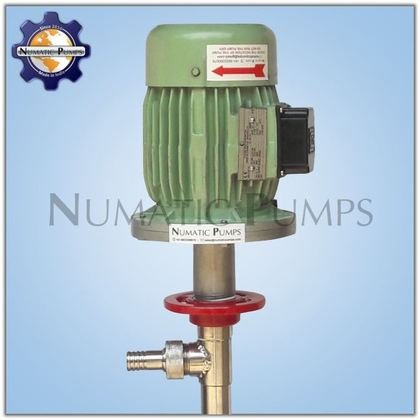

SS 316 Motorised High Viscosity Screw Barrel Drum Pump

● Suction Tube – Stainless Steel 316
● Screw – Stainless Steel 316
● Oil Seal & O-Ring – Viton
● Electrical Motor – 1 HP, NFLP, 3 Phase, 2880 RPM, Hindustan Make.
● Max Flow LPM & Head – 50 Liter Per Minute and Max Head 2 Mtr depend upon Media Viscosity.
● Pump Length – 1000 mm
● Inlet & Outlet – Discharge 25mm & Suction 44mm
● Suitable for – 200 – 210 ltr Barrel.
● Max. Viscosity can Operate – 15000 CPS
● Max Temperature – 100° C
● Suitable Media – Juice, Fevicol , Honey, Ketchup, Paint, Process Cheese, Soya Bean Slurry, Glucose etc.

SS Motorised Screw Barrel Pumps

SS Motorised Screw Barrel Pumps are vertical type Screw Pumps sized to fit into the bungholes of Barrels. SS 316 Motorised Screw Barrel Pumps have a portable design and very useful for pumping out high viscous material from Barrels. Stainless Steel Motorised Screw Barrel Pumps are available with Air or Electric motors. SS Motorised Screw Barrel Pumps can be used for transfer High Viscosity Media Like Pastes, Tomato Paste, Ketchup, Srikhand, Adhesives, Glucose, Petroleum Jelly, other Jellies, Cosmetics, Shampoos, Creams, Paste and many such High and Low Viscous Materials. Screw Barrel Pumps are especially useful in the Food Industry, Beverage Industry and Pharma industry as they prevent contamination from the environment during transfer as also due to manual handling of the material. Motorised Barrel Screw Pumps are also known as paste transfer Pumps or High viscous Barrel Pumps.


Barrel Pumps

We are a leading manufacturer, supplier, and exporter based in Mumbai, India. Motorised Barrel Pumps and Pneumatic Barrel Pumps are among the products we provide. These pumps are classified into two types: impeller and strew. Motorised Impeller Drum Pumps are used for low viscosity media up to 800 CPS, whereas Motorised Screw Barrel Pumps are utilised for liquid viscosities more than 800 CPS and up to 2,00,000 CPS. Our Barel Pumps are available in stainless steel 316, polypropylene, and PVDF. We also provide Flame Proof Electric Drum Pumps for customers who do not have an air compressor and do not wish to utilise a Pneumatic Barrel Pump. We are mostly interested in export inquiries from Canada, United States, South Africa, United Arab Emirates, Gulf, Middle East Countries, Philippines, Singapore, Thailand, Bangladesh, Sri Lanka, and Indonesia, as well as European nations.


How does Motorised Screw Barrel Pump work?

Vertical screw pumps intended to fit into barrel bungholes are SS Motorised Screw Barrel Pumps. Motorised Barrel Screw pumps are lightweight and portable, making them suitable for pumping high viscosity material from a barrel. These Barrel Pumps are powered by a low-RPM vertical motor. By using the centrifugal spinning method, the screw in the pump lifts the material from the bottom of the Tank or Barrel to the outside. Electric Screw Barrel Pumps can be driven by an air pneumatic or an electric motor. Pastes, Tomato Paste, Ketchup, Srikhand, Adhesives, Glucose, Petroleum Jelly, different Jellies, cosmetics, Shampoos, Creams, Paste, and a variety of other viscous liquids can be transferred SS Motorised Screw Drum Pump.
